AWS Development Environment with EC2, VPC, and RDS

Introduction

This project details the setup of a development environment in AWS. It uses a VPC for the network infrastructure, RDS for the MySQL database, and Security Groups and a Subnet Group to manage connectivity and security. A publicly accessible MySQL database was deployed within a custom VPC. Connectivity was validated using a Multipass instance.

Implementation Steps

The following steps detail the creation and configuration of the components in AWS using the AWS console, based on the specific implementation I carried out.

1. Creation of the VPC and Initial Components

  • VPC desafio-vpc:
    • I created the VPC named desafio-vpc with the IPv4 CIDR block: 10.0.0.0/16.
  • Initial Public Subnet:
    • The subnet created along with the VPC was named desafio-public.
    • IPv4 CIDR block: 10.0.0.0/24.
    • Availability Zone: us-east-1a.
    • I named the associated route table rtb-public.
  • Additional Public Subnet:
    • I created a second public subnet called desafio-public2.
    • VPC: desafio-vpc.
    • IPv4 CIDR block: 10.0.2.0/24.
    • Availability Zone: us-east-1b.
    • Route Table Association: I associated desafio-public2 with the same public route table (rtb-public) as desafio-public to ensure both had internet access.

2. Security Group Configuration

I created a new Security Group that allowed access from any IPv4 address and associated it with the desafio-vpc.

  • I selected the desafio-vpc.
  • I configured an inbound rule for all traffic with the source 0.0.0.0/0. This allows connection to the DB from anywhere on the Internet.

Aquí está la traducción de ambas secciones.

3. Creation of the Database Subnet Group

I created a database subnet group to be used with the database instance.

  • I accessed the Amazon RDS console.
  • I created a new DB Subnet Group.
  • VPC: desafio-vpc.
  • I selected the us-east-1a and us-east-1b availability zones and chose both public subnets (desafio-public, desafio-public2).

4. Launching the Amazon RDS Instance

I launched the RDS instance with public access.

  • I accessed the Amazon RDS console.
  • I selected the us-east-1 region, the same one where the VPC was created. For this sandbox environment, I did not use Multi-AZ replication, but rather a single Availability Zone, as this was the option enabled for this tier.
  • Database Engine: I selected MySQL.
  • Template: I used the Dev/Test template because it is the one that allows for a sandbox environment.
  • DB instance identifier: desafio-db.
  • Instance size: db.t3.micro.
  • Storage: 20 GB (General Purpose SSD).
  • Credentials: I auto-generated a master password and saved it.
  • Connectivity:
    • VPC: I selected the created VPC (desafio-vpc).
    • Public access: I selected Yes to be able to access the DB from any computer on the Internet.
    • VPC security group: I associated the security group that I had previously created.
  • Enhanced monitoring: I disabled “Enable Enhanced monitoring” because the sandbox environment does not allow it.
  • Finally, I created the database. I viewed the credential details, including the password and the instance endpoint address.

5. Connectivity Test with Multipass

Once the instance was created, I verified that I could access it using a Multipass environment. I installed MySQL and then tested the endpoint provided by the DB.

Install the MySQL client on the Multipass instance: sudo apt update

  1. sudo apt install -y mysql-client
  2. Connect to the RDS instance:

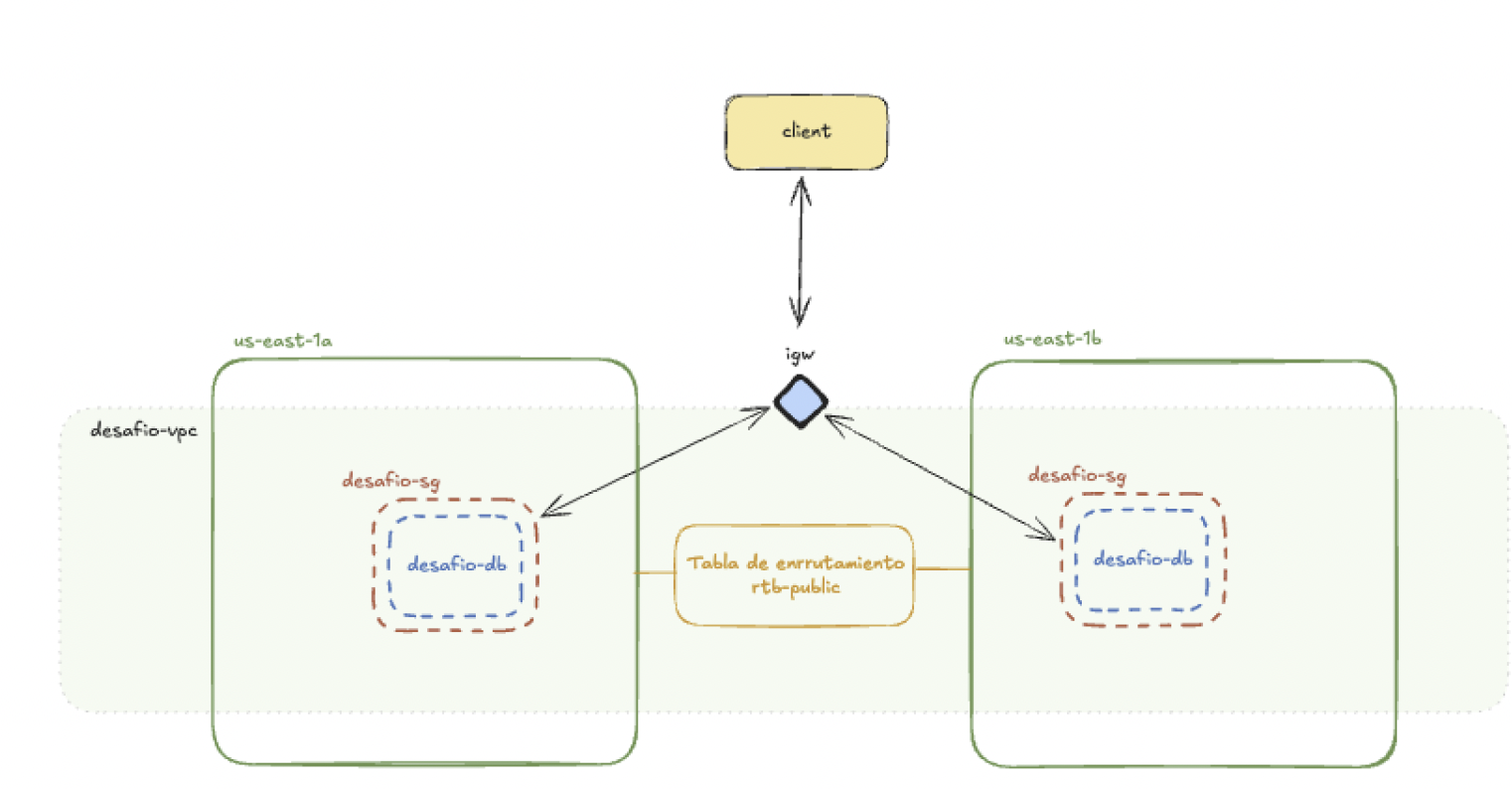

Diagram
